Unique product features:

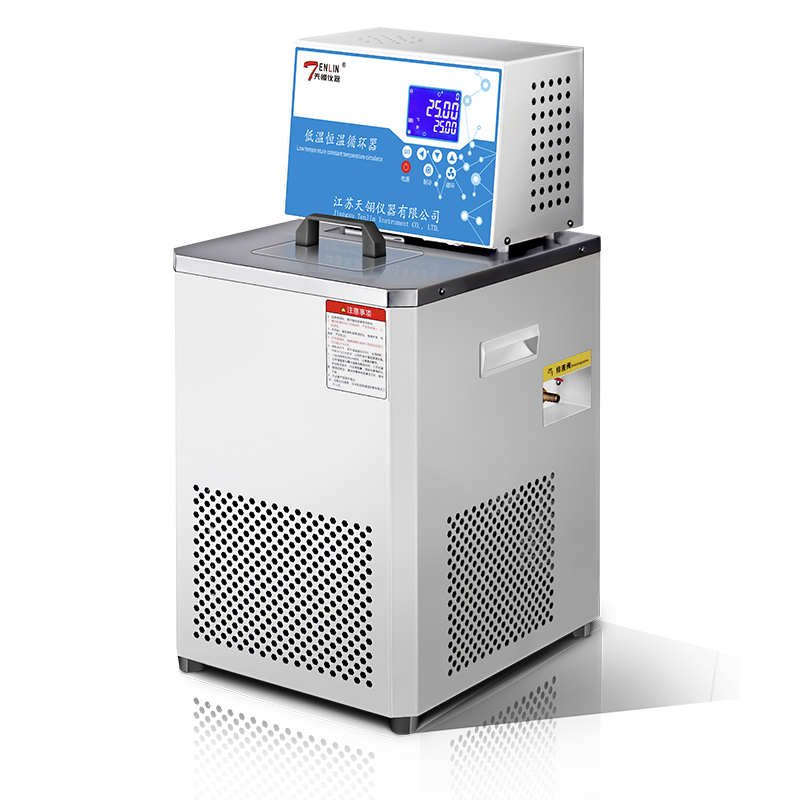

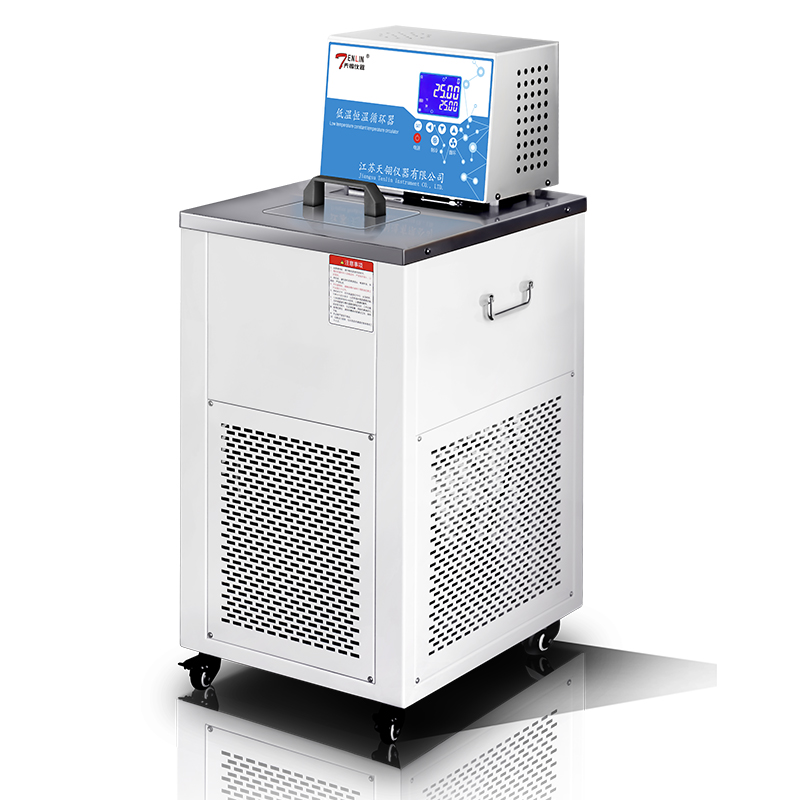

The low-temperature constant temperature circulator provides low-temperature constant temperature liquid within the temperature range of -40 ~ 100 ℃ to meet the needs of cooling water and low-temperature liquid to cool down or constant temperature instruments.
● it is especially suitable for the supporting use of experimental equipment such as rotary evaporator, fermentation tank, Abbe refractometer, electron microscope, low-temperature chemical reactor, transparent glass reactor, biopharmaceutical reactor, etc.

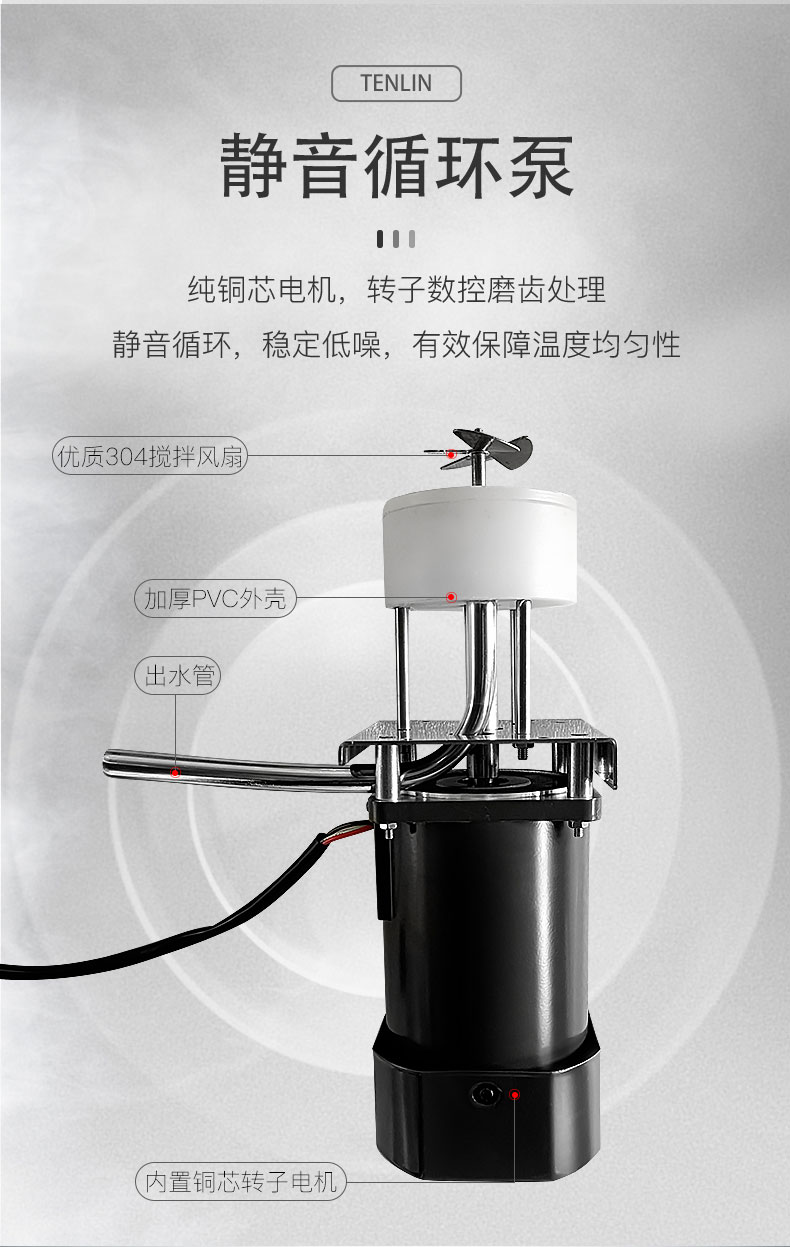

● advanced internal circulation / external circulation pump system, internal circulation makes the instrument temperature uniform and constant; The external circulation pump outputs low-temperature constant temperature liquid with a flow rate of 5 L / min ~ 18 L / min, and a lift of 4.0 meters.
● various containers containing biochemical reagents or tested samples can also be put into the working tank containers of 5-50 liters to directly conduct low-temperature test or test, so as to realize multi-purpose of one machine.

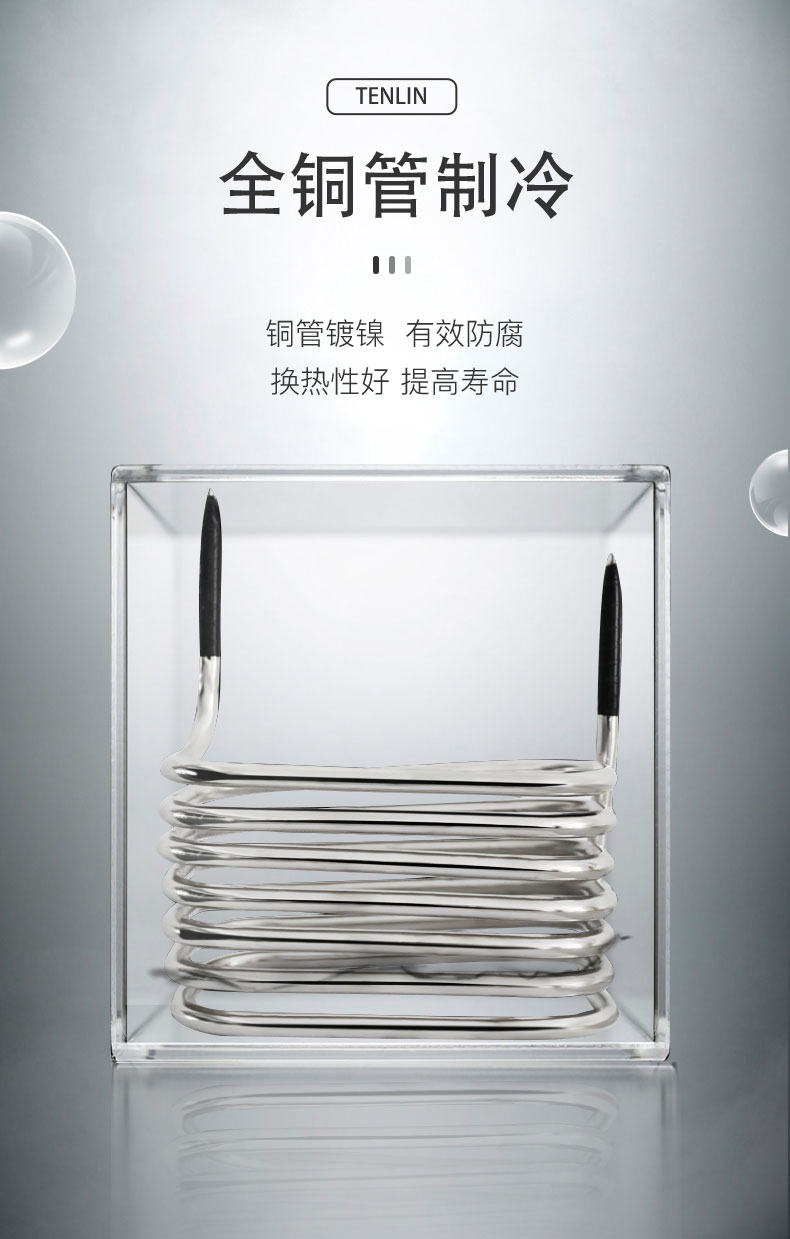

● air cooled high-efficiency totally enclosed compressor has low noise and rapid cooling.
● large screen LCD display, temperature setting, convenient and fast operation.
● the resolution of digital display is 0.1 ℃, 0.01 ℃ and 0.001 ℃.
● it has the function of temperature measurement deviation correction.
● temperature overtemperature protection, sensor abnormal protection, upper limit overtemperature alarm, temperature settable, refrigeration system overheating, overcurrent automatic protection.
| Model | Temperature（℃） | Resolving power（℃） | Volatility（±℃） | Volume（L） | Flow（L/min） | Power（kw） | Overall dimension（mm） | Market price (yuan) |
| HX-08 | 0~100 | 0.01 | 0.05 | 8 | 13 | 1.3 | 320*370*675 | 7500 |
| HX-0508 | -5~100 | 0.01 | 0.05 | 8 | 13 | 1.3 | 320*370*675 | 8900 |
| HX-1008 | -10~100 | 0.01 | 0.05 | 8 | 13 | 1.4 | 320*370*675 | 9600 |
| HX-2008 | -20~100 | 0.01 | 0.05 | 8 | 13 | 1.4 | 320*370*765 | 10900 |
| HX-3008 | -30~100 | 0.01 | 0.05 | 8 | 13 | 1.6 | 320*370*765 | 12700 |
| HX-4008 | -40~100 | 0.01 | 0.05 | 8 | 13 | 1.8 | 400*450*940 | 25000 |
| HX-010 | 0~100 | 0.01 | 0.05 | 10 | 13 | 1.6 | 320*370*765 | 9200 |
| HX-0510 | -5~100 | 0.01 | 0.05 | 10 | 13 | 1.6 | 320*370*765 | 10500 |
| HX-1010 | -10~100 | 0.01 | 0.05 | 10 | 13 | 1.6 | 320*370*765 | 11500 |
| HX-2010 | -20~100 | 0.01 | 0.05 | 10 | 13 | 1.7 | 320*370*765 | 12100 |
| HX-3010 | -30~100 | 0.01 | 0.05 | 10 | 13 | 1.7 | 400*450*940 | 13600 |
| HX-4010 | -40~100 | 0.01 | 0.05 | 10 | 13 | 2.0 | 450*540*990 | 28000 |
| HX-015 | 0~100 | 0.01 | 0.05 | 15 | 13 | 1.7 | 320*370*765 | 11200 |
| HX-0515 | -5~100 | 0.01 | 0.05 | 15 | 13 | 1.7 | 320*370*765 | 12300 |
| HX-1015 | -10~100 | 0.01 | 0.05 | 15 | 13 | 1.7 | 320*370*765 | 14100 |
| HX-2015 | -20~100 | 0.01 | 0.05 | 15 | 13 | 2.0 | 320*370*765 | 15200 |
| HX-3015 | -30~100 | 0.01 | 0.05 | 15 | 13 | 2.1 | 400*450*940 | 18700 |
| HX-4015 | -40~100 | 0.01 | 0.05 | 15 | 13 | 2.3 | 450*540*990 | 34000 |
| HX-020 | 0~100 | 0.01 | 0.05 | 20 | 13 | 2.1 | 400*450*1040 | 13800 |
| HX-0520 | -5~100 | 0.01 | 0.05 | 20 | 13 | 2.1 | 400*450*1040 | 14900 |
| HX-1020 | -10~100 | 0.01 | 0.05 | 20 | 13 | 2.2 | 400*450*1040 | 16500 |
| HX-2020 | -20~100 | 0.01 | 0.05 | 20 | 13 | 2.3 | 400*450*1040 | 18900 |
| HX-3020 | -30~100 | 0.01 | 0.05 | 20 | 13 | 2.3 | 400*450*1040 | 25800 |
| HX-4020 | -40~100 | 0.01 | 0.05 | 20 | 13 | 2.5 | 400*450*1090 | 36800 |
| HX-030 | 0~100 | 0.01 | 0.05 | 30 | 13 | 2.3 | 450*540*990 | 16500 |
| HX-0530 | -5~100 | 0.01 | 0.05 | 30 | 13 | 2.3 | 450*540*990 | 17600 |
| HX-1030 | -10~100 | 0.01 | 0.05 | 30 | 13 | 2.3 | 450*540*990 | 19600 |
| HX-2030 | -20~100 | 0.01 | 0.05 | 30 | 13 | 2.5 | 450*540*990 | 23500 |
| HX-3030 | -30~100 | 0.01 | 0.05 | 30 | 13 | 2.5 | 450*540*990 | 28000 |
| HX-4030 | -40~100 | 0.01 | 0.05 | 30 | 13 | 2.7 | 450*540*1090 | 39800 |
