Unique product features:

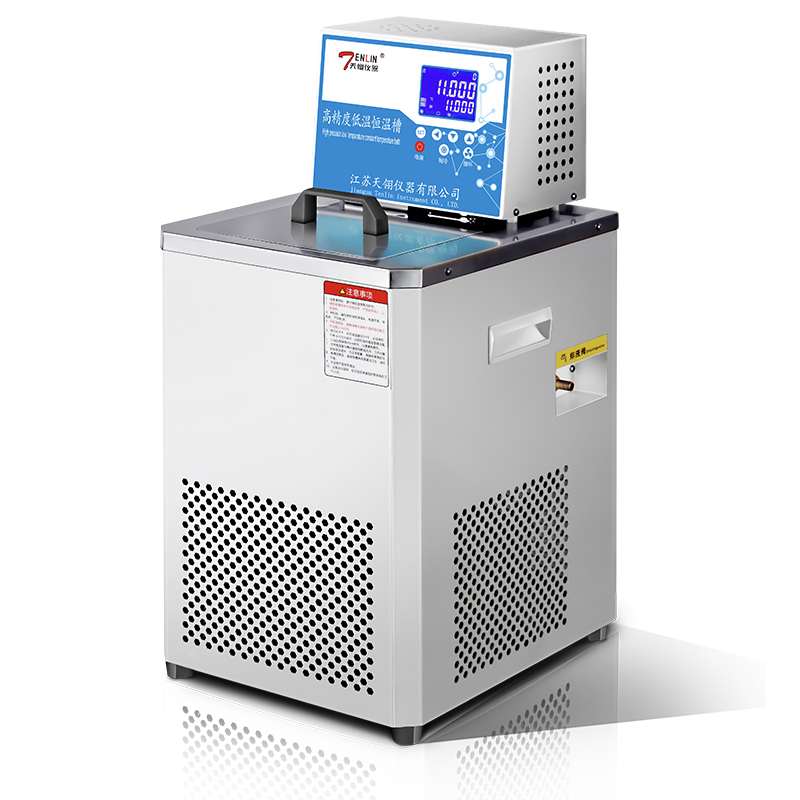

The high-precision low-temperature constant temperature bath is suitable for various research, application technology, production, quality inspection and other laboratory and industrial fields, and provides an accurate constant temperature system in the full range of temperature.
● large screen LCD with digital display resolution of 0.001 ℃
● adopt high-efficiency air-cooled totally enclosed compressor unit for refrigeration, with fast cooling speed and low noise. The refrigeration system has multiple automatic protection devices such as overheating and overcurrent.
● the deviation of temperature measurement value can be corrected, and the temperature display accuracy can reach 0.001 ℃
● it adopts high-precision software, which is easy to operate, has strong temperature stability, and can be adjusted automatically or manually by PID.
● upper and lower temperature alarms can be set.
● it can be equipped with circulating pump to establish the second constant temperature field outside the machine or the second laboratory container outside the cooler.
● it can be equipped with RS232 or RS485 communication interface to realize data transmission and remote control.
| Model | Temperature（℃） | Resolving power（℃） | Volatility（±℃） | Volume（L） | Slot opening（mm） | Groove depth（mm） | Circulation mode | Power（kw） | Overall dimension（mm） | Market price (yuan) |
| GDH-0506 | -5~100 | 0.001 | 0.005-0.02 | 6 | 180*160 | 150 | Internal circulation | 0.8 | 320*370*675 | 11300 |
| GDH-1006 | -10~100 | 0.001 | 0.005-0.02 | 6 | 180*160 | 150 | Internal circulation | 0.9 | 320*370*675 | 11700 |
| GDH-2006 | -20~100 | 0.001 | 0.005-0.02 | 6 | 180*160 | 150 | Internal circulation | 1.0 | 320*370*675 | 12300 |
| GDH-3006 | -30~100 | 0.001 | 0.005-0.02 | 6 | 180*160 | 150 | Internal circulation | 1.5 | 320*370*765 | 14200 |
| GDH-4006 | -40~100 | 0.001 | 0.005-0.02 | 6 | 180*160 | 150 | Internal circulation | 2.1 | 400*450*940 | 24900 |
| GDH-0510 | -5~100 | 0.001 | 0.005-0.02 | 10 | 180*160 | 200 | Internal circulation | 1.3 | 320*370*765 | 12000 |
| GDH-1010 | -10~100 | 0.001 | 0.005-0.02 | 10 | 180*160 | 200 | Internal circulation | 1.5 | 320*370*765 | 12900 |
| GDH-2010 | -20~100 | 0.001 | 0.005-0.02 | 10 | 180*160 | 200 | Internal circulation | 1.8 | 320*370*765 | 14100 |
| GDH-3010 | -30~100 | 0.001 | 0.005-0.02 | 10 | 180*160 | 200 | Internal circulation | 2.0 | 320*370*765 | 16200 |
| GDH-4010 | -40~100 | 0.001 | 0.005-0.02 | 10 | 180*160 | 200 | Internal circulation | 2.1 | 400*450*940 | 29500 |
| GDH-0515 | -5~100 | 0.001 | 0.005-0.02 | 15 | 250*160 | 200 | Internal circulation | 2.1 | 320*370*765 | 14500 |
| GDH-1015 | -10~100 | 0.001 | 0.005-0.02 | 15 | 250*160 | 200 | Internal circulation | 2.2 | 320*370*765 | 15200 |
| GDH-2015 | -20~100 | 0.001 | 0.005-0.02 | 15 | 250*160 | 200 | Internal circulation | 2.3 | 320*370*765 | 16200 |
| GDH-3015 | -30~100 | 0.001 | 0.005-0.02 | 15 | 250*160 | 200 | Internal circulation | 2.4 | 320*370*765 | 21000 |
| GDH-4015 | -40~100 | 0.001 | 0.005-0.02 | 15 | 250*160 | 200 | Internal circulation | 2.5 | 450*540*990 | 32000 |
| GDH-0520 | -5~100 | 0.001 | 0.005-0.02 | 20 | 250*160 | 300 | Internal circulation | 2.3 | 400*450*1040 | 18000 |
| GDH-1020 | -10~100 | 0.001 | 0.005-0.02 | 20 | 250*160 | 300 | Internal circulation | 2.4 | 400*450*1040 | 19200 |
| GDH-2020 | -20~100 | 0.001 | 0.005-0.02 | 20 | 250*160 | 300 | Internal circulation | 2.5 | 400*450*1040 | 21300 |
| GDH-3020 | -30~100 | 0.001 | 0.005-0.02 | 20 | 250*160 | 300 | Internal circulation | 2.6 | 400*450*1040 | 30500 |
| GDH-4020 | -40~100 | 0.001 | 0.005-0.02 | 20 | 250*160 | 300 | Internal circulation | 2.7 | 450*540*1090 | 33500 |
| GDH-0530 | -5~100 | 0.001 | 0.005-0.02 | 30 | 330*280 | 230 | Internal circulation | 2.5 | 450*540*990 | 20900 |
| GDH-1030 | -10~100 | 0.001 | 0.005-0.02 | 30 | 330*280 | 230 | Internal circulation | 2.6 | 450*540*990 | 22900 |
| GDH-2030 | -20~100 | 0.001 | 0.005-0.02 | 30 | 330*280 | 230 | Internal circulation | 2.7 | 450*540*990 | 26500 |
| GDH-3030 | -30~100 | 0.001 | 0.005-0.02 | 30 | 330*280 | 230 | Internal circulation | 2.7 | 450*540*990 | 33200 |
| GDH-4030 | -40~100 | 0.001 | 0.005-0.02 | 30 | 330*280 | 230 | Internal circulation | 3.0 | 450*540*1090 | 40800 |
